G6.0D(250mm)

- Compact residential diaphragm gas meter
- Long term accuracy and reliability
- Environment-friendly design
- Compliance with OIML and international standard

Technical Characteristics

MODEL NAME G6.0D(250mm)
Cyclic Volume 2.5dm³
Operating Temperature -25°C ~ +55°C
Maximum Operating Pressure 50kPa
Measuring Range Qmax 10.0m³/h
Qmin 0.06m³/h
Color Ivory
Measuring Gas Natural Gas, Petroleum Gas

Dimension & Weight

Standard Connection 1 Inch (25A)
Connection Thread (Inlet/Outlet) PF 1 1/4"
Center ( C ) 250.0mm
W x H x D 291.9mm x 286.5mm x 133.2mm
Setting Span ( M ) 66.6mm
Weight 3.6kg

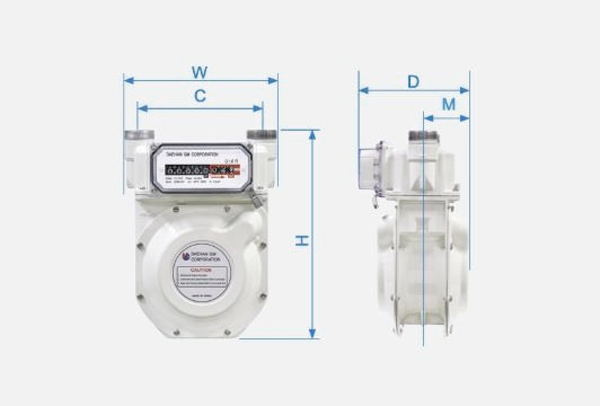

Dimension

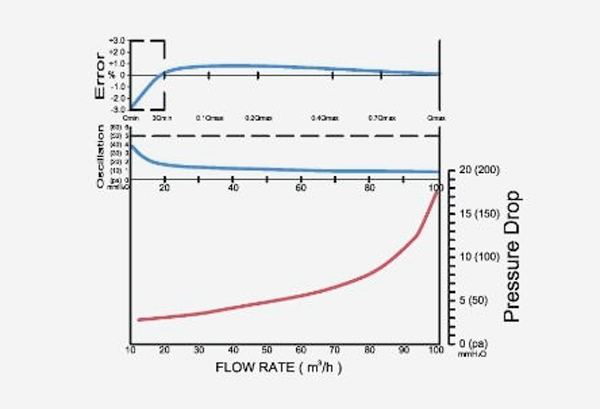

Performance Curve
