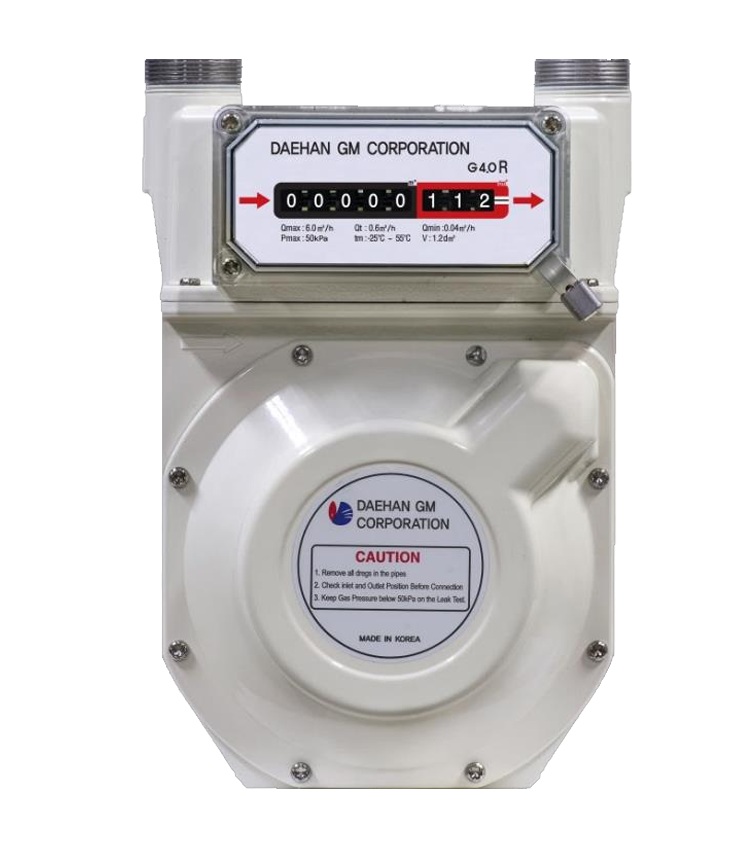

G4.0D
- Compact residential diaphragm gas meter
- Long term accuracy and reliability
- Environment-friendly design
- Compliance with OIML and international standard
Technical Characteristics
| MODEL NAME | G4.0 |
|---|---|
| Cyclic Volume | 1.2dm³ |
| Operating Temperature | -20°C ~ +60°C |
| Maximum Operating Pressure | 10kPa |
| Measuring Range | Qmax 6.0m³/h |
| Qmin 0.04m³/h | |
| Color | Ivory |
| Measuring Gas | LNG, LPG |
Dimension & Weight
| Standard Connection | 3/4 Inch (20A) |
|---|---|
| Connection Thread (Inlet/Outlet) | M34 x P1.5 |
| Center ( C ) | 130.0mm |
| W x H x D | 163.8mm x 221.5mm x 133.5mm |
| Setting Span ( M ) | 54.5mm |
| Weight | 1.92kg |
Dimension
Performance Curve
